Ability（能力）是鸿蒙软件的基础单位，一个应用可以包含多个Ability。鸿蒙支持应用以Ability为单位进行部署

Page Ability

Page提供页面管理和页面跳转的能力。例如外卖提供联系商家的业务入口，当用户使用此功能时，会跳转到通话应用的拨号页面。鸿蒙支持Page之间的跳转，并且指定跳转到某个AbilitySlice

创建

右键就可以进行创建，并且它的配置文件如下

{
        "skills": [
          {
            "entities": [
              "entity.system.home"
            ],
            "actions": [//路由名称
              "action.system.home"
            ]
          }
        ],
        "orientation": "unspecified",
        "name": "com.example.learn123.MainAbility",
        "icon": "$media:icon",
        "description": "$string:mainability_description",
        "label": "$string:entry_MainAbility",//标题栏上的文字
        "type": "page",//page、service、data三种
        "launchType": "standard",//或者是singleton单例模式
        "visible": true
      }

页面导航

统一page页面导航

首先在Ability中注册路由，如

super.addActionRoute("abilityslice1", AbilitySlice1.class.getName());
super.addActionRoute("abilityslice2", AbilitySlice2.class.getName());

名字需要在config.json中的actions中注册

然后使用present进行跳转

Intent intent = new Intent();
present(new AbilitySlice1(), intent);

如果希望带返回值的跳转，则使用presentForResult

Intent intent = new Intent();
presentForResult(new AbilitySlice(), intent, 100);//最后一个参数是一个标识，标识是哪个页面发起请求

然后在跳转到的页面中
Intent intent = new Intent();
intent.setParam("back", "abcd");
setResult(intent);
terminate();//关闭本页面，跳转到先前的页面

然后原页面可以使用onResult处理返回值

@Override
protected void onResult(int requestCode, Intent resultIntent)
{
    super.onResult(requestCode, resultIntent);
    if(requestCode == 100)
    {
        btn2.append("resultIntent.getStringParam("back"));
    }
}

鸿蒙管理不同的slice是通过栈的方式，跳转时如果在栈中已经存在，那么会弹出在他上面的。

例如：

Ability1进栈
Ability2进栈
Ability3进栈

现在栈中： Abiilty3 Ability2 Ability1

然后跳转到Ability1，栈的情况变为： Ability1
也就是说Ability1中的内容还是老的内容

Page之间的跳转

page之间的跳转可以通过startAbility()或startAbilityForResult()方法，获得返回结果的回调为onAbilityResult()

Intent intent = new Intent();
Operation operation = new Intent.OperationBuilder()
                .withDeviceId("")
                .withBundleName("com.charjedu.router_demo")
                .withAbilityName(".SecondAbility")
                .build();
intent.setOperation(operation);
startAbility(intent);

此外，如果某个名字使用addActionRoute("name", ...)全局注册，那么我们可以直接跨Ability跳转

intent.setAction("secondslice1");
startAbility(intent);

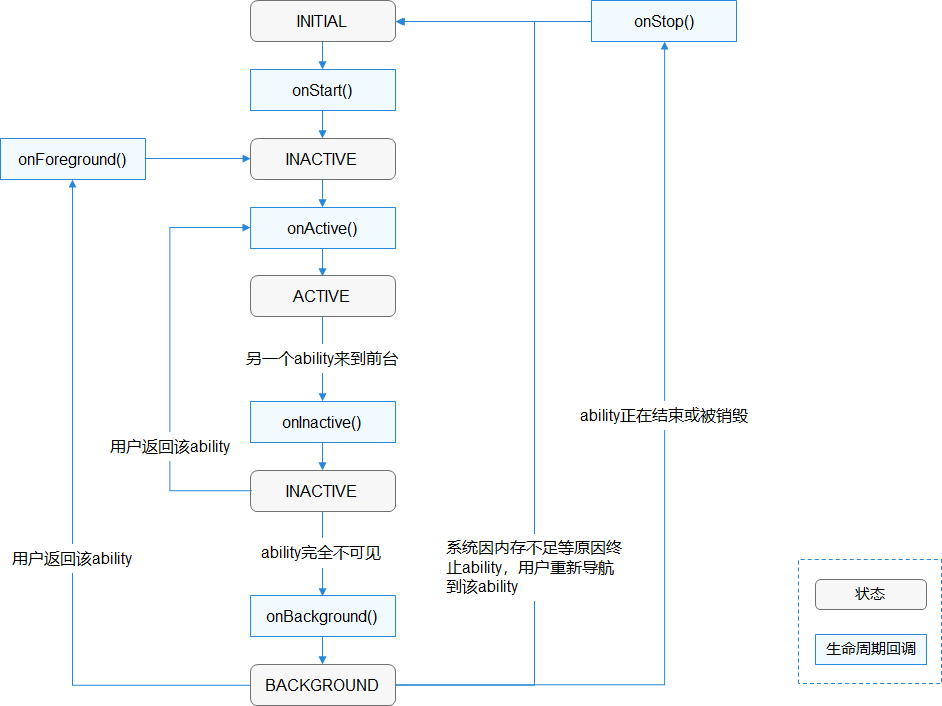

生命周期

onStart(): 首次创建时触发
onActive(): 获得焦点时
onInactive(): 失去焦点时
onBackground(): 转到后台时
onStop(): 销毁时

AbilitySlice和page具有相同的生命周期。

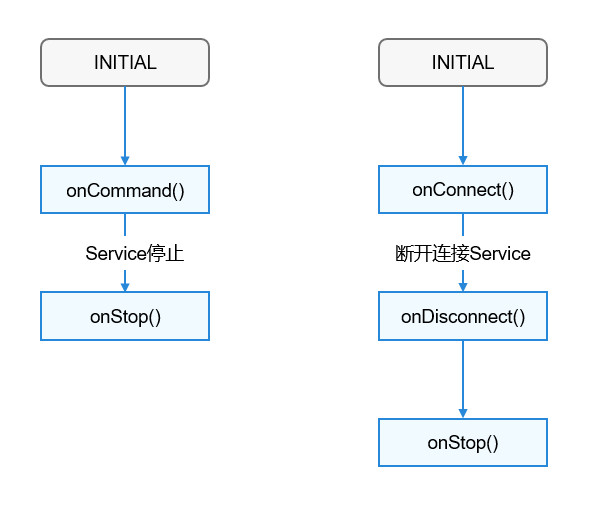

Service Ability

启动Service有两种方式

通过startAbility()启动
通过connectAbility()启动，客户端可以通过disconnectAbility()断开连接

Service和Page不同的是它分为本地和远程两端。启动本地的方式和Page一样，启动远程的方式为

Operation operation = new Intent.OperationBuilder()
            .withDeviceId("deviceId")
            .withBundleName("com.huawei.himusic")
            .withAbilityName"com.huawei.hiworld.ServiceAbility")
            .withFlags(Intent.FLAG_ABILITYSLICE_MULTI_DEVICE)
            .build();
Intent intent = new Intent();
intent.setOperation(operation);
startAbility(intent);

远程连接Service

startAbility和stopAbility适合于时间很短并且交互量不大的场景，例如按钮的开关。而长时间则需要connect进行连接，如遥控器调节音量

步骤：

在config.json中申请权限，将reqPermissions添加到module中

"module":{
    "package": "com.cangjie.jsabilitydemo",
    "name": ".MyApplication",
    "deviceType": [...],
    "distro": {"deliveryWithInstall": true},
    "abilities": [...],
    "js": [...],
    "reqPermissions": [{
                {
                //访问分布式数据
                    "name": "ohos.permission.DISTRIBUTED_DATASYNC"
                },
                {
                //访问服务总线的绑定服务
                    "name": "ohos.permission.servicebus.ACCESS_SERVICE"
                },
                {
                //访问服务总线的服务接入权限
                    "name": "ohos.permission.servicebus.BIND_SERVICE"
                },
                {
                //访问分布式设备状态相关权限
                    "name": "ohos.permission.DISTRIBUTED_DEVICE_STATE_CHANGE"
                },
                {
                //分布式设备信息获取权限
                    "name": "ohos.permission.GET_DISTRIBUTED_DEVICE_INFO"
                },
                {
                //获取Bundle信息权限
                    "name": "ohos.permission.GET_BUNDLE_INFO"
                }
                }]//添加
}

同时我们还需要在MainAbility中获取权限

@Override
public void onStart(Intent intent)
{
    requestPermissionsFromUser(new String[]{
        "ohos.permission.DISTRIBUTED_DATASYNC",
        "ohos.permission.servicebus.BIND_SERVICE",
        "ohos.permission.servicebus.ACCESS_SERVICE"
        ], 0);
    super.onStart(intent);
    super.setMainRoute(MainAbilitySlice.class.getName());
}

获取设备信息

public class DeviceUtil
{
    public interface ISelectResult
    {
        void onSelectResult(String deviceId);
    }

    //获得设备列表并进行相关操作
    public static void getOnlineDeviceInfo(ISelectResult listener)
    {
        List<DeviceInfo> onlineDevices = DeviceManager.getDeviceList(DeviceInfo.FLAG_GET_ONLINE_DEVICE);

        if(onlineDevices.isEmpty())
        {
            listener.onSelectResult(null);
            return;
        }
        int numDevices = onlineDevices.size();
        ArrayList<String> deviceIds = new ArrayList<>(numDevices);
        ArrayList<String> deviceNames = new ArrayList<>(numDevices);
        onlineDevices.forEach((device)->{
            deviceIds.add(device.getDeviceId());
            deviceNames.add(device.getDeviceName());//获得设备名
        });
        String selectDeviceId = deviceIds.get(0);
        listener.onSelectResult(selectDeviceId);//选择第一个设备
    }
}

//使用
DeviceUtil.getOnlineDeviceInfo(new DeviceUtil.ISelectResult(){
    @Override
    public void onSelectResult(String deviceId)
    {
        Intent intent = new Intent();
        Operation operation = new Intent.OperationBuilder()
            .withDeviceId(deviceId)
            .withBundleName("com.charjedu.ability_demo")
            .withAbilityName(".RemoteServiceAbility")
            .build();
        intnet.setOperation(operation);
        connectAbility(intent, conn);
    }
});

创建本地代理

public class MyRemoteProxy implements IRemoteBroker
{
    private static final int COMMAND_PLUS = IRemoteObject.MAX_TRANSACTION_ID;
    private static final int ERR_OK = 0;
    private final IRemoteObject remote;

    public MyRemoteProxy(IRemoteObject remote)
    {
        this.remote = remote;
    }

    //返回远程对象，需要实现
    @Override
    public IRemoteObject asObject()
    {
        return remote;
    }

    //自定义的Service Ability方法
    public int plus(int a, int b)
    {
        MessageParce1 data = MessageParce1.obtain();
        data.writeInt(a);
        data.writeInt(b);

        MessageParce1 reply = MessageParce1.obtain();
        //同步接收
        MessageOption option = new MessageOption(MessageOption.TF_SYNC);
        int result = 0;
        try
        {
            //发送信息到远程，reply是远程返回的结果
            //COMMAND_PLUS是用来标识当前是什么操作
            remote.sendRequest(COMMAND_PLUS, data, reply, option);
            int ec = reply.readInt();
            if(ec != ERR_OK)
            {
                throw new RemoteException();
            }
            result = reply.readInt();
        }catch(RemoteException e)
        {
            e.printStackTrace();
        }
        return result;
    }
}

IRemoteObject是connectAbility的回调中

connectAbility(new Intent(), new IAbilityConnection() {
         @Override
         public void onAbilityConnectDone(ElementName elementName, IRemoteObject iRemoteObject, int i) {

         }

         @Override
         public void onAbilityDisconnectDone(ElementName elementName, int i) {

         }
     });

创建远程代理

public class MyRemote extends RemoteObject implements IRemoteBroker
{
    private static final int COMMAND_PLUS = IRemoteObject.MAX_TRANSACTION_ID;
    private static final int ERR_OK = 0;
    private static final int ERROR = -1；

    public MyRemote()
    {
        super("my_remote");
    }

    @Override
    public IRemoteObject asObject()
    {
        return this;
    }

    @Override
    public boolean onRemoteRequest(int code, MessageParcel data, MessageParcel reply, MessageOption option)throws RemoteException
    {
        if(code != COMMAND_PLUS)
        {
            reply.writeInt(ERR_OK);
            return false;
        }
        int v1 = data.readInt();
        int v2 = data.readInt();
        int rs = v1 + v2;
        reply.writeInt(ERR_OK);
        reply.writeInt(rs);
        return true;
    }
}

创建远程Service Ability

public class RemoteServiceAbility extends Ability
{
    private MyRemote remote = new MyRemote();
    //返回远程对象
    @Override IRemoteObject onConnect(Intent intent)
    {
        return remote;
    }
}

前台Service Ability

一般情况下，Service都是在后台运行的，并且后台的优先级都是比较低的，资源不足时可能回收后台运行的Service

如果希望应用一直运行，便需要使用前台Service。前台Service会有一个保持运行的图标在前台显示。

想要启动前台服务，需要开启ohos.permission.KEEP_BACKGROUND_RUNNING。并且在配置文件中添加backgroundModes参数，最后在onStart中调用keepBackgroundRunning并且在onStop中调用cancelBackgroundRunning停止前台Service

public void onStart(Intent intent)
{
    super.onStart(intent);

    NotificationRequest request = new NotificationRequest(1005);
    NotificationRequest.NotificationNormalContent content = new NotificationRequest.NotificationNormalContent();
    content.setTitle("title").setText("前台服务通知");
    NotificationRequest.NotificationContent notificationContent = new NotificationRequest.NotificationContent(content);
    request.setContent(notificationContent);
    keepBackgroundRunning(1005, request);
}

Data Ability

url

鸿蒙url的组成为Scheme://[authority]/[path][?query][#fragment]

scheme: 协议名，固定为dataability
authority: 设备id，如果为跨设备场景，则为目标设备的id，如果是本地设备，则无需填写
path：路径

DataAbilityHelper

DataAbilityHelper可以访问当前应用和其他应用提供的共享数据，它需要ohos.permission.READ_USER_STORAGE和ohos.permission.WRITE_USER_STORAGE权限。

DataAbilityHelper.creator(this): 创建DataAbilityHelper
openFile(Uri, String mode): 打开文件，mode有r、w、rw、wt（覆盖写）、wa（追加写）、rwt
query(Uri uri, String[] columns, DataAbilityPerdicates): 查询
insert(Uri uri, ValuesBucket value): 向数据库中插入单条数据
batchInsert(Uri uri, ValuesBucket[] values)
delete(Uri uri, DataAbilityPredicates predicates)
update(…)
executeBatch(ArrayList\ operations): 批量操作
